The Ask Volume at Price for Bars study monitors upto 59 price levels per chart bar (from low to high) and exposes the volume at price data via subgraphs.
The subgraph data can be displayed in a numeric information and/or used for configuring volume at price based alerts or referencing by a spreadsheet study for more in depth analysis.
Note:
- This study can only be used on charts with a chart data type of ‘Intraday Chart‘
- It is recommended to use ‘Intraday Data Storage Time Unit‘ setting ‘1 Tick’
Inputs
Background Color (In:1)
Specify the background color to be used for the numeric information table.
Transparent Background (In:2)
Background Color is ignored and numeric information table is drawn with transparent background.
Font Size (0 = Use Chart Font Size) (In:3)
Defines the font size (in pixels) used for the numeric information table display.
Note: Use Chart Font Size is not compatible with OpenGL graphics, in this case the font size must be set to the preferred size.
- Min: 0
- Max: 100
Draw Zeros (In:4)
If Draw Zeros is enabled, then all cells in the numeric information table that would otherwise be empty will instead be filled with zeros.
Set Text Color Automatically (In:5)
When enabled, the subgraph colors for text display will be automatically over-written using the ‘Text Color’ input value.
Text Color (In:6)
Specify the color to be used for text values when ‘Set Text Color Automatically’ is enabled.

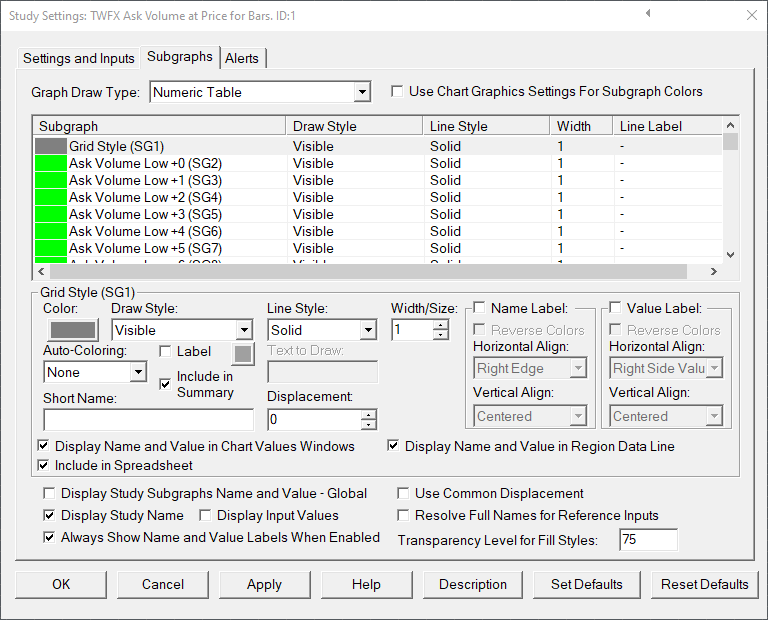

Subgraphs
Default: Visible
Defines the visibility, color, linestyle and line width used for the grid of the numeric information table.
to
Ask Volume Low +58 (SG60)
Default: Visible
Defines the visibility and color used for Ask Volume subgraphs.
Displays the ask volume at price for the upto 59 price levels (starting at the low of the chart bar).
